VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Fort Lauderdale, FL | Westlight Windows Fort Lauderdale

The VLX 100 Swing / Entry Door is a modern aluminum single-entry door built around a clean, minimalist frame and a multi-point locking system. It’s the door homeowners in Fort Lauderdale choose when they want a front entrance that feels architectural rather than decorative. As an authorized ViewLux installation partner, Westlight Windows Fort Lauderdale supplies, fits, and stands behind this specific product line across Broward County. We measure, order, install, and warranty the work ourselves, so you’re not juggling a manufacturer, a dealer, and a subcontractor. Call (754) 354-5397 to talk specs, lead times, or pricing with our Fort Lauderdale team directly.

Product Overview – VLX 100 Swing / Entry Door

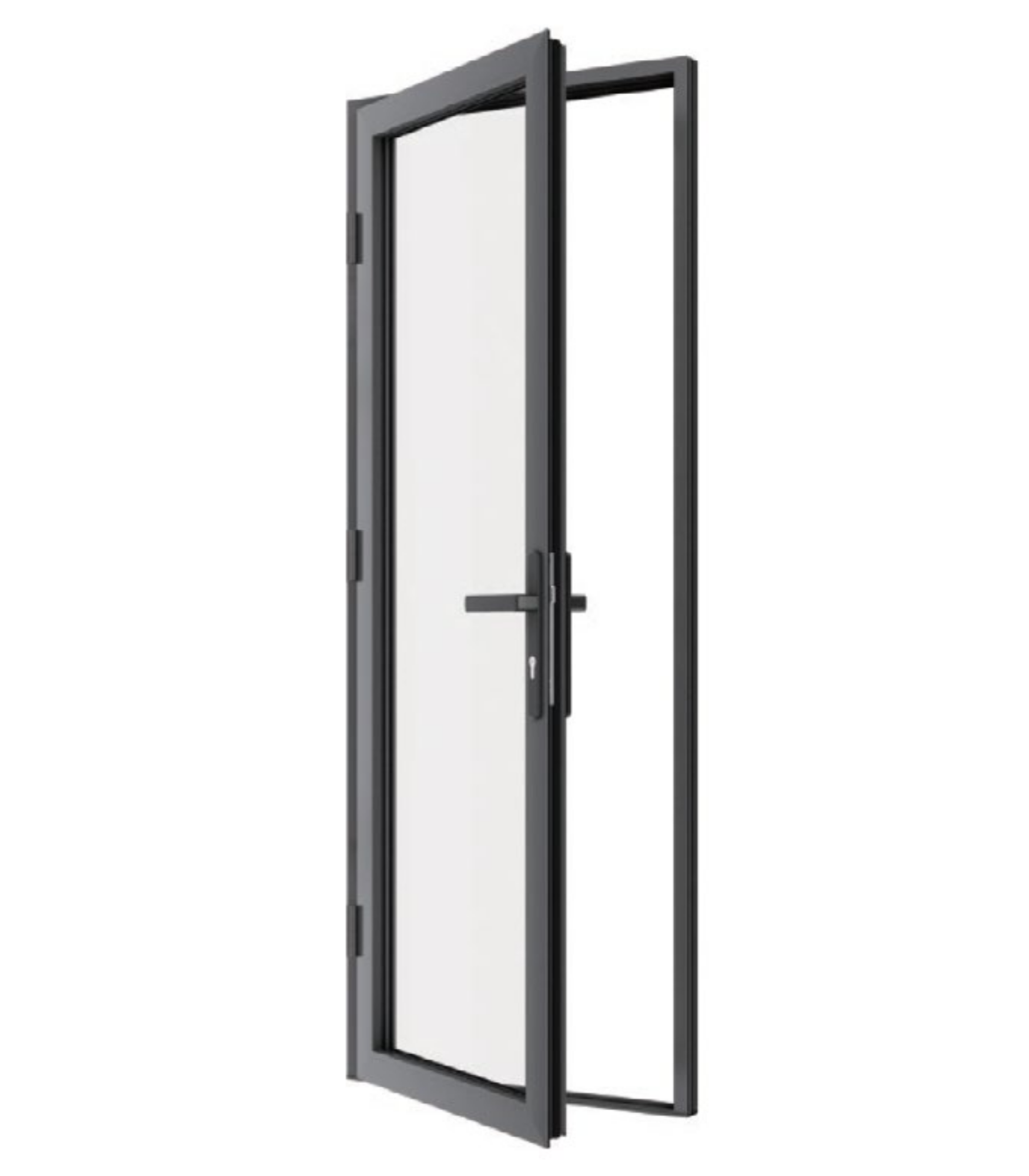

The VLX 100 is a single-entry aluminum swing door with a profile width of 2.56 inches and a wall thickness of 0.098 inches. In plain terms, the frame is slim enough to disappear into the wall but thick enough to carry real structural load. That’s what gives the door its signature look: a near-flush face with narrow sightlines, wide glass area, and no bulky stiles eating into the daylight opening.

The multi-point locking hardware is the other half of the story. Instead of a single latch at the handle, the door locks at several points along the frame when you lift the handle. This spreads force along the entire leaf and makes the door dramatically harder to kick, pry, or flex. For Fort Lauderdale homes, where a front door is also a storm barrier and a security boundary, that’s not a luxury feature. It’s the reason this series exists.

Architecturally, the VLX 100 fits contemporary single-family homes, mid-century renovations, and the kind of clean-lined coastal builds common from Victoria Park to Rio Vista to Coral Ridge. It also works well as a secondary entry on modern additions where the client wants light and sightlines without a sliding track. Because it’s aluminum, it won’t warp, swell, or rot in the humidity that defines South Florida weather. That’s why so many Fort Lauderdale homeowners swap out wood entry doors after one rainy season and don’t look back.

Technical Specifications

Here’s what the VLX 100 Swing / Entry Door brings to the table, in numbers we can quote accurately:

• Frame wall thickness: 0.098″ aluminum extrusion
• Profile width: 2.56″ visible frame
• Maximum panel span: up to 48″ wide per door leaf
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen, or no screen
• Hardware: Multi-point locking, handle set specified at order
• Performance compliance: NFRC-rated thermal break, AAMA 2400/2410 installation standard, AAMA 812 perimeter sealant

The 48-inch maximum span matters for design. If your entry is wider than that, we talk about a fixed sidelight or a paired configuration rather than forcing a single door beyond its tested limits. That’s how warranty-safe installations work: you respect the product’s engineering envelope.

Performance Features

Thermal Efficiency. The VLX 100 frame carries an integrated thermal break, which separates the interior and exterior aluminum surfaces so heat doesn’t conduct straight through the metal. This is what allows the door to meet NFRC-rated energy performance standards. In Fort Lauderdale, where afternoon sun hammers east-facing entries from March through October, that break is the difference between a door that radiates heat into your foyer and one that doesn’t.

Acoustic Performance. Aluminum frames with proper perimeter sealing and laminated glass deliver meaningful noise reduction. This matters more than people expect in Fort Lauderdale, especially on streets like Las Olas, Sunrise Boulevard, or anywhere near FLL flight paths. A well-sealed VLX 100 entry door cuts a surprising amount of street and air traffic sound before it enters the house.

Airtightness & Weather Seal. Every installation by Westlight Windows Fort Lauderdale uses AAMA 812 low-expansion foam sealant on all perimeter joints. That’s a specific, industry-standard product class, not whatever foam comes out of a hardware store can. The seal stops air movement around the frame, which is what actually controls humidity migration into the wall cavity.

Waterproofing. The VLX 100 is designed for water management at the sill level, with integrated drainage that moves water out and away rather than trapping it against the frame. Combined with the AAMA 812 perimeter seal and our installation method, the door resists the wind-driven rain that Fort Lauderdale gets every summer afternoon. Mist prevention is handled through the same thermal break and seal discipline.

Wind Resistance. This door is wind-load rated for the local climate requirements we deal with in Broward County. When paired with the laminated impact glass option, the VLX 100 becomes a legitimate storm-rated entry for homes that need to meet Miami-Dade or Florida Building Code provisions. We can specify the glass package based on your property’s exposure and your insurance requirements.

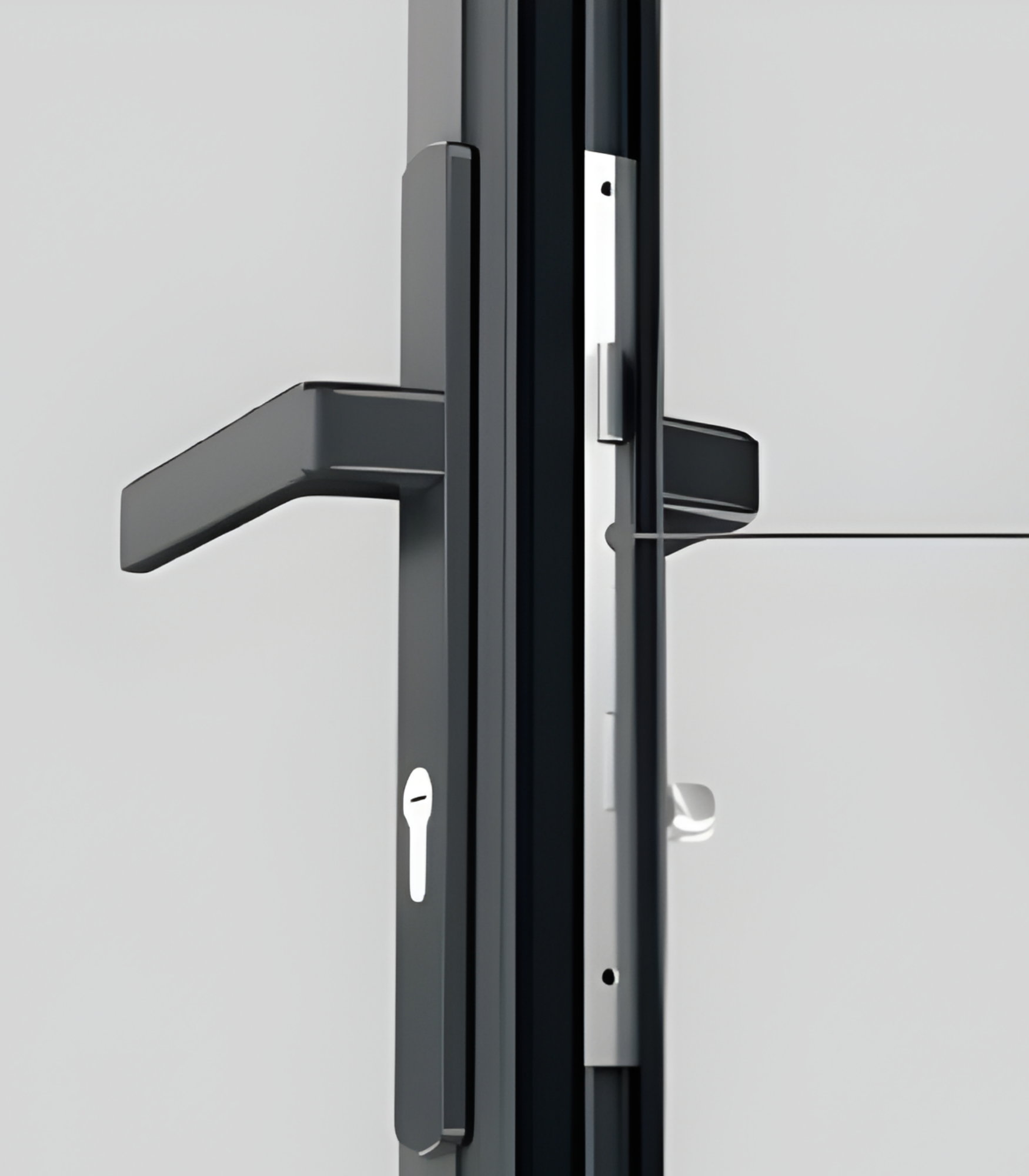

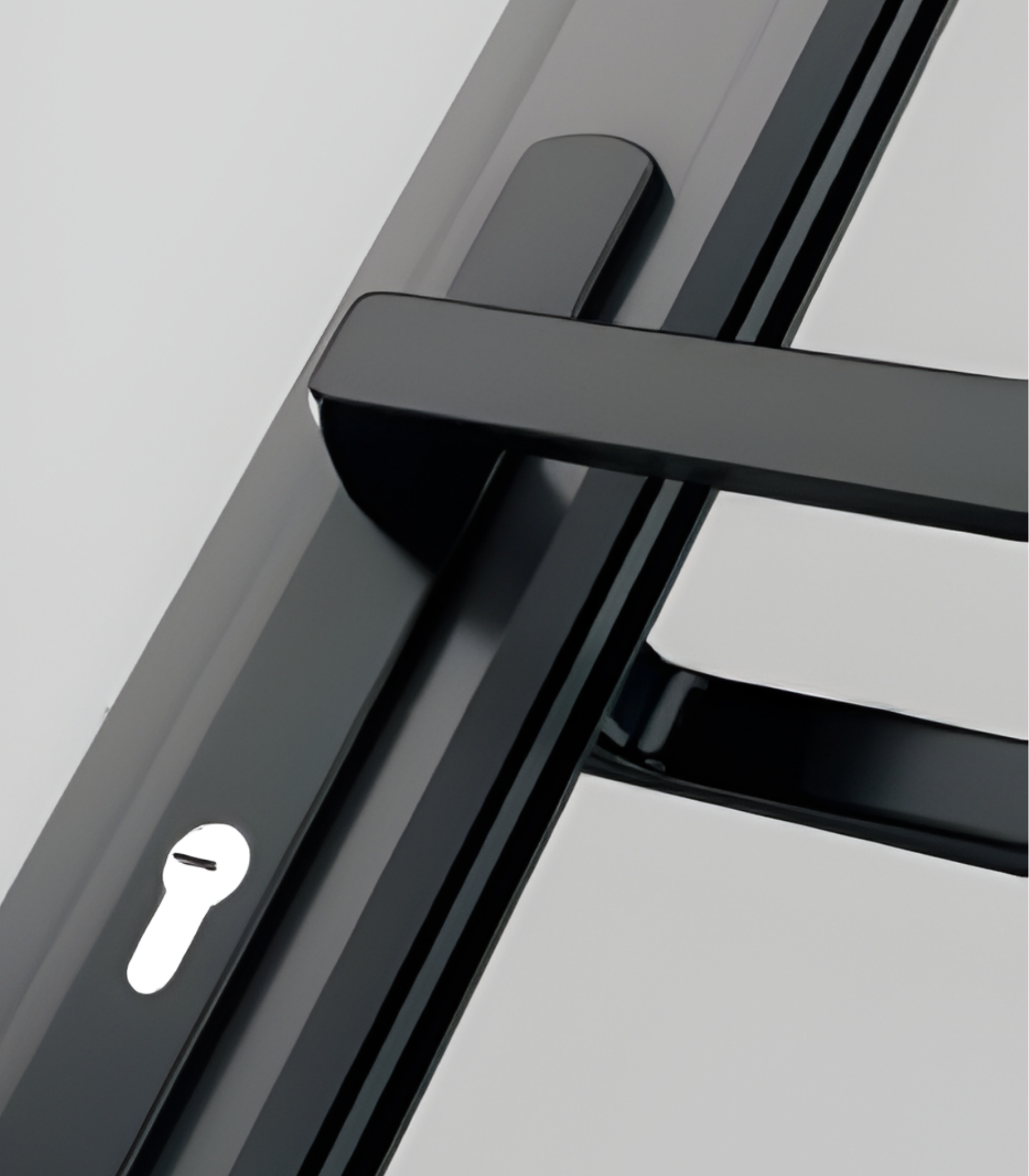

Security & Hardware. The multi-point locking system engages multiple bolts along the frame with a single handle lift. It’s a locking mechanism used in high-end European door systems for decades, and it’s the single biggest upgrade over a standard deadbolt entry. The frame itself, at 0.098 inches of wall thickness, doesn’t flex easily under force. That’s the point.

Color & Glass Options

The finishes on the VLX 100 are powder-coated or anodized depending on which color you select. Premium Black and Pure White are the two most common choices for modern Fort Lauderdale homes, and both hold up well under years of direct UV exposure without fading the way painted wood does. Anodized Silver reads as a classic aluminum look; it suits industrial, loft-style, or true mid-century builds. Bronze and Champagne land in between modern and warm, working nicely with natural stone facades and copper accents. Teak Wood is the wildcard: it gives the warmth of wood grain over an aluminum core, which appeals to buyers who want the look without the rot and termite risk.

On the glass side, Clear maximizes natural light and visibility. Frosted and Obscure are the options for front entries where you want privacy while keeping daylight. Low-E is our default recommendation for any door that gets direct sun: it cuts heat gain and UV fading inside the house. Tempered glass is standard for door applications because it breaks safely. Laminated is the impact-rated option for storm zones and is the one insurance companies in Fort Lauderdale tend to ask about first.

Installation by Westlight Windows Fort Lauderdale in Fort Lauderdale

Here’s how the process works when you order a VLX 100 through Westlight Windows Fort Lauderdale.

First, we do a pre-install inspection of the rough opening. We check the framing, the condition of the sub-sill, and any existing water damage from the old door. We don’t install over rot, and we don’t guess. In Fort Lauderdale, older concrete block homes often have rough openings that are out of square by a quarter-inch or more, and a 2.56-inch aluminum frame doesn’t hide that the way a bulkier wood frame might. We measure precisely and order the door to fit the actual opening, not the architect’s idealized drawing.

On installation day, the door is set level, plumb, and square. We shim and anchor the frame to the structural opening, then seal every perimeter joint with AAMA 812 low-expansion foam. The sill is bedded correctly, flashed where required, and tested for water drainage before we call the job done. Our work follows the AAMA 2400/2410 installation standard, which is the recognized guideline for installing fenestration products in Florida’s climate conditions.

The reason this matters: most aluminum door warranty claims come from poor installation, not product defects. A door that’s racked, twisted, or poorly sealed will leak, bind, or fail early, and the manufacturer will not cover it. That’s the quiet advantage of buying through an authorized partner that installs with its own crew. The door and the installation have a single responsible party.

We also walk you through operation, care, and the hardware warranty after the project is complete. You’re not handed a door and a business card. You’re handed a working entry system and a phone number that answers.

Frequently Asked Questions – VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door?

Lead time for the VLX 100 Swing / Entry Door typically runs four to six weeks from finalized measurements and deposit, depending on glass package, finish, and current factory workload. Custom sizes and laminated impact glass can push toward the longer end. Call (754) 354-5397 and we’ll check current availability for your specific configuration before you commit.

Does the VLX 100 qualify for energy tax credits?

The VLX 100 with Low-E glass and the thermal break may qualify for energy-efficiency incentives if it meets the current federal or utility program thresholds for exterior doors in your tax year. We can’t promise a tax outcome, but we can give you the NFRC performance data on your exact configuration so your accountant can confirm. Ask us for the spec sheet when you call for a quote.

What warranty comes with the Swing / Entry Door?

The VLX 100 carries the manufacturer’s warranty on the frame, glass, and hardware, and Westlight Windows Fort Lauderdale warrants our installation workmanship separately. The installation warranty is what protects you if a seal fails or the door settles out of alignment. Get the specifics in writing with your quote, because warranty terms vary by finish and glass package.

Can I customize the size of the VLX 100?

The VLX 100 is made to order, so width and height are customized within the product’s tested maximums. The single leaf maxes out at 48 inches wide; for wider openings we’ll add a fixed sidelight or a paired configuration. Height customization is available, but Fort Lauderdale homes with standard 80-inch rough openings rarely need it unless it’s a custom build.

How do I maintain an aluminum frame door in Fort Lauderdale’s climate?

Maintenance on the VLX 100 is simple: wash the frame and glass with mild soap and water a few times a year, clean the sill track and weeps so drainage stays clear, and wipe down the hardware with a dry cloth. Salt air near Fort Lauderdale Beach or the Intracoastal means you should rinse the frame more often. Avoid abrasive cleaners on powder-coated finishes.

Get a Quote – VLX 100 Swing / Entry Door in Fort Lauderdale

Ready to see what a VLX 100 Swing / Entry Door costs for your home? Call Westlight Windows Fort Lauderdale at (754) 354-5397 and we’ll schedule a free on-site measurement, walk you through glass and finish options, and put a line-item quote in your hands. Whether you’re replacing a tired front door in Sailboat Bend or spec’ing a new build in Colee Hammock, we’ll help you get the entry right the first time.

Written by the team at Westlight Windows Fort Lauderdale, authorized ViewLux installation partner serving Fort Lauderdale and Broward County.
